The Bar Gear is an auxiliary support system for the S36 drifter, providing a rigid and safe mounting platform essential for accurate and efficient pneumatic drilling. Designed as a customizable assembly of interchangeable components, it allows users to configure simple bar-and-arm setups, H-frame structures, or stub-axle mounts to suit any drilling application while ensuring safety through built-in safety clamps.

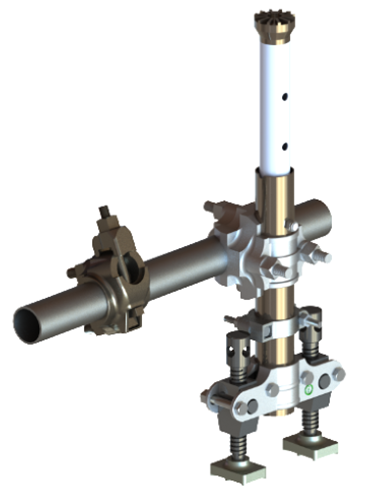

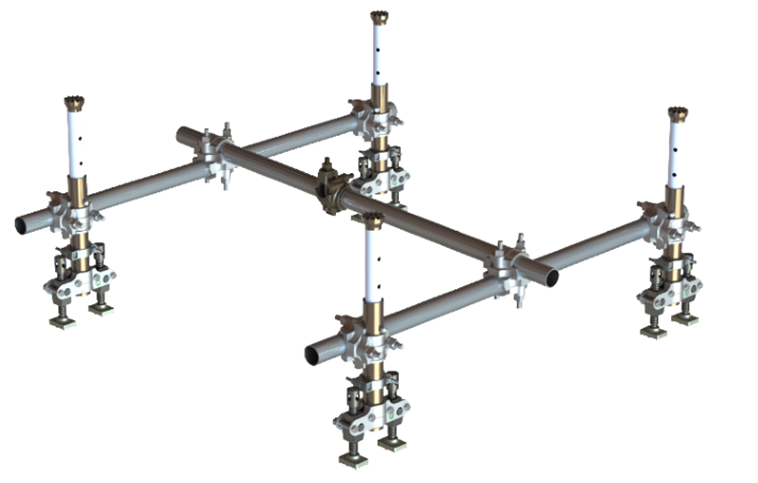

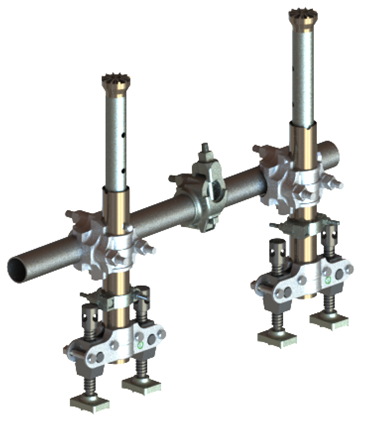

The Bar Gear is a critical auxiliary component designed specifically for the S36 drifter, ensuring the rigid mounting required for precise and productive pneumatic drilling. Featuring a 114 mm (4½ inch) telescopic bar system, each Bar Gear assembly is built from a selection of modular parts chosen by the user to match their exact drilling needs. Depending on the application, operators can configure simple bar-and-arm assemblies, robust H-frame structures, or specialized stub-axle mountings for enhanced alignment during “round-the-clock” or fan drilling operations.
Safety is a central feature of every Bar Gear configuration. Integrated safety clamps prevent components from sliding unexpectedly, maintaining secure positioning even when cross clamps are loosened for adjustments. This helps ensure operator safety and reduces the risk of accidents in demanding drilling environments.
Because each drilling setup is unique, no single part number covers an entire assembly. Instead, Bar Gear systems are constructed from standardized components, enabling users to tailor a rigid, reliable, and safe mounting solution that optimizes drilling performance across a wide range of applications.
