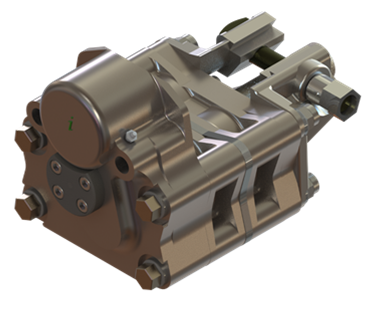

Double Feed Gearbox (Tanmo)

The Double Gearbox for the MKV Long Hole Feed provides increased torque and enhanced drilling power for more demanding ground conditions. Its dual-stage gearing delivers stronger rotational output and improved penetration, making it ideal for deeper holes and tougher rock formations.

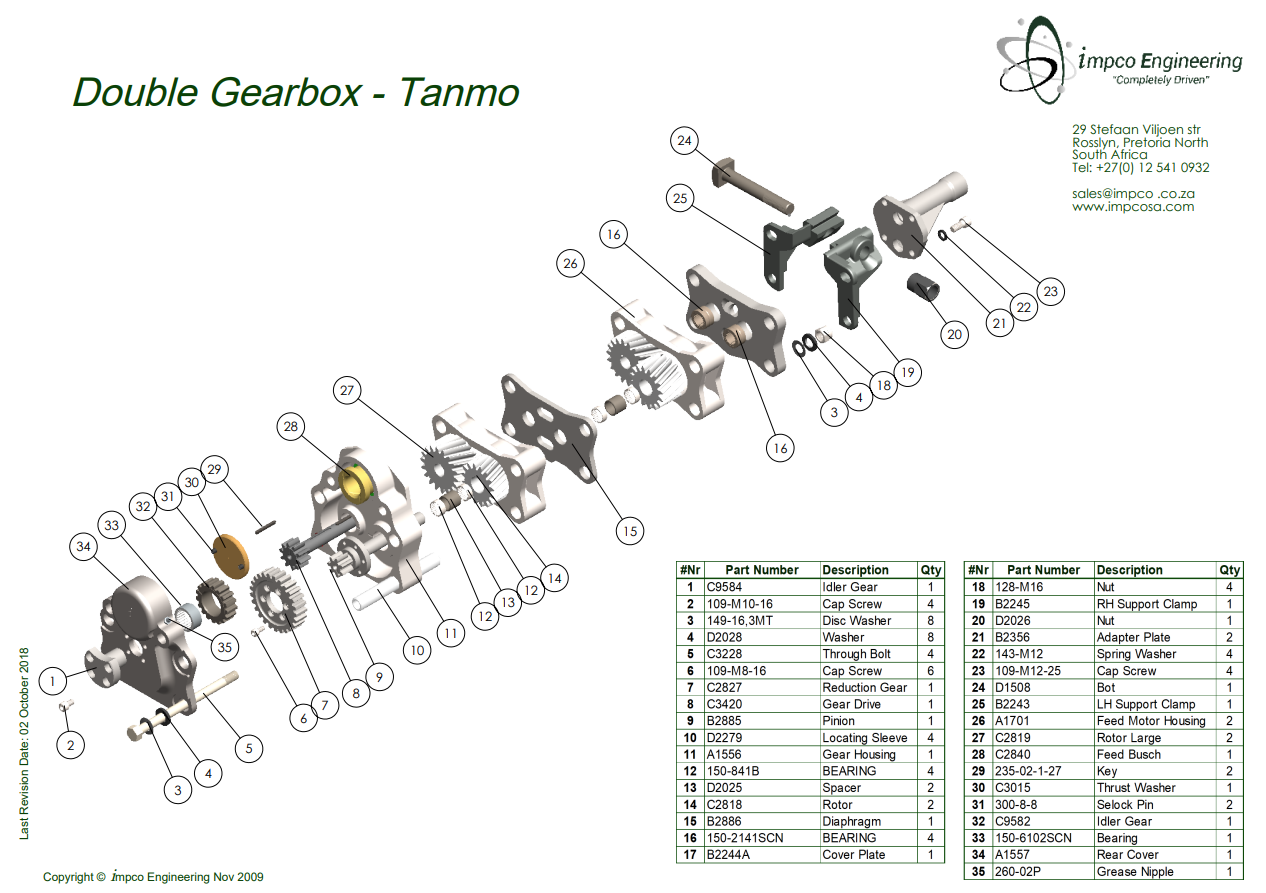

No Part No Description QTY
1C9584Idler Shaft Gear1
2109-M10-16Cap Screw4
3149-16,3MTWasher8
4D2028Washer8
5C3228Bolt4
6109-M8-16Cap Screw6
7C2827Reduction Gear1
8C3420Gear Drive1
9B2885Pinion1
10D2279Locating Sleeve4
11A1556Gear Housing1
12150-841BBearing4
13D2025Spacer2
14C2818Rotor Small 16 Teeth2
15D2886Diaphragm1
16150-2141SCNBearing4
17B2244AAir Motor Cover MK51
18128-M16Nut Nyloc4
No Part No Description QTY
19B2245Clamp RH1
20D2026Nut1
21B2356Adaptor Plate2
22143-M12Washer4
23109-M12-25Cap Screw4
24D1508Bolt1
25B2243Clamp LH1
26A1701Feed Motor Housing2
27C2819Rotor Large 18 Teeth2
28C2840Feed Screw Bush1
29235-02-1-27Key2
30C3015Thrust Washer1
31300-8-8Selock Pin2
32C9582Idler Gear1
33150-6102SCNBearing1
34A1557Rear Cover1
35260-02PNipple1
