Impco lubricators deliver reliable air-misted rock drill oil supply for pneumatic long-hole and diamond drills. Built with laser-cut, rugged welded construction and a large-capacity 6.8 L (1.5 gal) reservoir, they ensure maximum airflow, consistent lubrication, and dependable performance in demanding drilling environments.

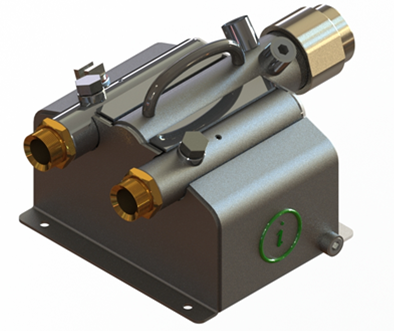

Impco lubricators are engineered to provide consistent, controlled lubrication for pneumatic long-hole drills and diamond drills, ensuring reliable performance and extended equipment life. Constructed with laser-cut components and rugged welded housings, these in-line lubricators feature a large 63 mm (2½″) air inlet and dual 38 mm (1½″) outlets designed to maximize air volume and flow for high-demand drilling applications.
Air is thoroughly filtered through a stainless-steel screen, while rock drill oil is accurately metered using independent needle-point adjusting valves—eliminating the need for seasonal orifice changes. The 6.8-liter (1.5-gallon) reservoir provides a steady supply of air-misted rock drill oil at normal operating temperatures, ensuring smooth, efficient lubrication. A built-in safety filler cap alerts the operator when the unit is pressurized, and an integrated carry handle makes transportation simple and convenient.
Durable, reliable, and easy to maintain, Impco lubricators offer high-performance lubrication in a robust, field-ready package suitable for the toughest underground drilling conditions.
| Safety and Convenience | Laser-cut, rugged welded housing ensures long-lasting durability and withstands the harsh demands of underground drilling environments. |
| High-Capacity Lubrication | Includes a 6.8 L (1.5 gal) reservoir for extended operating time, with stainless-steel air filtration and precise needle-valve oil metering for consistent air-misted lubrication. |
| Efficiency and Operator Safety | Fitted with a safety filler cap that warns the operator when pressurized, and equipped with an easy-carry handle for improved mobility and operational efficiency. |

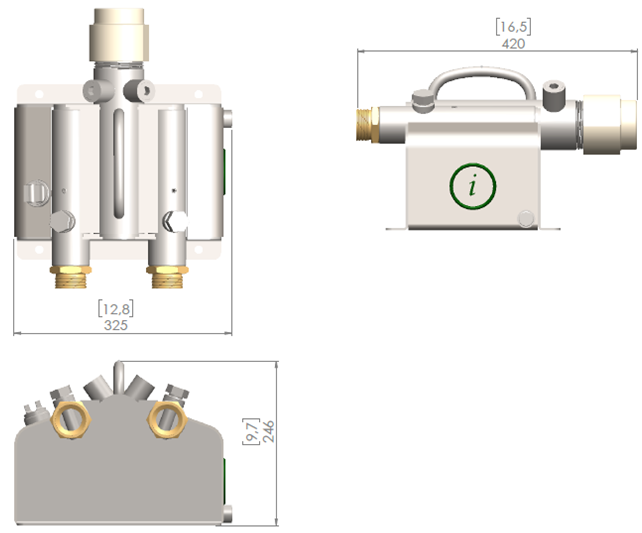

| Â | Metric | Imperial |
| Length | 420 mm | 16.5 Inches |
| Width | 325 mm | 12.8 inches |
| Height | 246 mm | 9.7 inches |
| Nett Weight | 20 kg | 44lb |
| Capacity | 6.8 litre | 1.5 gal |
