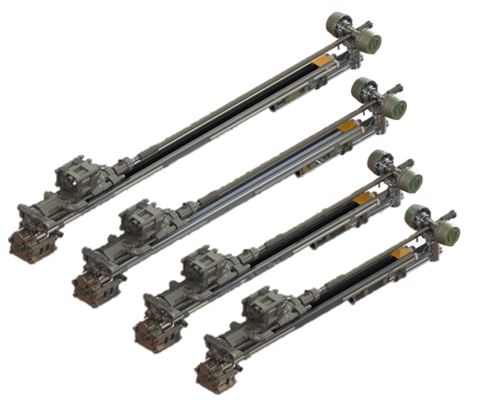

Impco Engineering’s OEM pneumatic feed systems are designed for underground drilling, offering lightweight yet durable performance through rugged aircraft-grade aluminum construction. Available in multiple configurations—including single, double, and triple gearbox options—they support drill rods up to 1.8 m (6 ft) and feed lengths from 3 ft to 14 ft, ensuring reliable torque, efficiency, and adaptability for a wide range of drilling applications.
Impco Engineering designs, manufactures, and supplies complete OEM pneumatic feed systems engineered specifically for demanding underground drilling environments. Each system is built to accommodate drill rods up to 1.8 m (6 ft) and is available in various lengths ranging from 3 ft to 14 ft, providing flexibility for a wide range of operational needs.
The feed assemblies feature a heavy-duty aluminum extrusion for strength and reduced weight, while key components are crafted from tool steel and lightweight aluminum to optimize durability and cost efficiency. Precision-machined aircraft-grade aluminum ensures long service life, high structural integrity, and ease of handling.
To meet diverse application requirements, Impco feed systems offer multiple build configurations, including single, double, and triple gearbox setups—allowing operators to select the appropriate torque output for their drilling conditions. This modularity ensures consistent performance, precise control, and reliable penetration in underground drilling operations.
| Metric | Imperial | |
| MK5-FS-2M-Tanmo | 2.0m Max Drill Rod Size | 6 .15ft |
| MK5-FS-1.5M Tanmo | 1.8m Max Drill Rod Size | 5.90 ft |
| MK5-FS-4’-NC –Tanmo | 1.2m Max Drill Rod Size | 4.00 ft |
| MK5-FS-1M-RC Standmo | 1.0m Max Drill Rod Size | 3.20 ft |
| MK5-FS-2M-Tanmo | Max Drill Rod 2.0m | 6.15 ft |
| MK5-FS-1.5M Tanmo | Max Drill Rod 1.80m | 5.90 ft |
| MK5-FS-4’-NC –Tanmo | Max Drill Rod 1.2m | 4.00 ft |
| MK5-FS-1M-RC Standmo | Max Drill Rod 1.0m | 3.20 ft |
| Air Consumption | 212 L/sec @ 7 bar | 450 cfm @ 100 psi |
| Air Connection -Rotation | 25 mm | 1.0 in |
