Impco Engineering’s control panels and pneumatic valves deliver high-flow, low-power operation for every drilling application. Built with precision tool steel and modular components, they offer reliable performance, flexible mounting options, and customizable remote controls with multiple lever configurations to suit S36 drills or equivalent rigs.
Impco Engineering has developed a range of robust pneumatic valves and control panels designed for high-flow performance with low power consumption. Engineered for versatility, these valves accommodate port sizes from 12.5 mm (½”) to 38 mm (1¾”) and can be mounted directly on a drilling rig or a remote control stand, providing operators with flexibility and ease of access.
Control panels are available with 3, 4, or 5 lever configurations to suit different drilling setups, including S36 independent drills and equivalent brands. Options include single or double air inlets, and fully customized remote controls can be built to meet specific operational requirements.
Constructed from precision tool steel castings with interchangeable modular components, Impco valves are designed for durability and ease of maintenance. Outlet holes are threaded uniformly for simplicity, and lubrication flow can be adjusted to ensure smooth operation and extended component life. These control panels provide operators with dependable, high-quality performance in demanding drilling environments.
| Durable Construction | Precision tool steel castings and rugged modular components ensure long service life and reliability in harsh conditions. |
| Flexible and Easy to Mount | Flat-bottom design allows simple mounting, with threaded outlet holes of the same size for quick installation and interchangeability. |
| Adjustable Performance | Lubrication flow can be fine-tuned for optimal operation, and remote control lever configurations can be customized to suit specific drilling requirements. |
| Remote Control | Levers | Percussion | Feed | Centralizer | Air / Water | Rotation |
| RCP-5U-IR-21-002 | 5 | Yes | Yes | Yes | Yes | Yes |

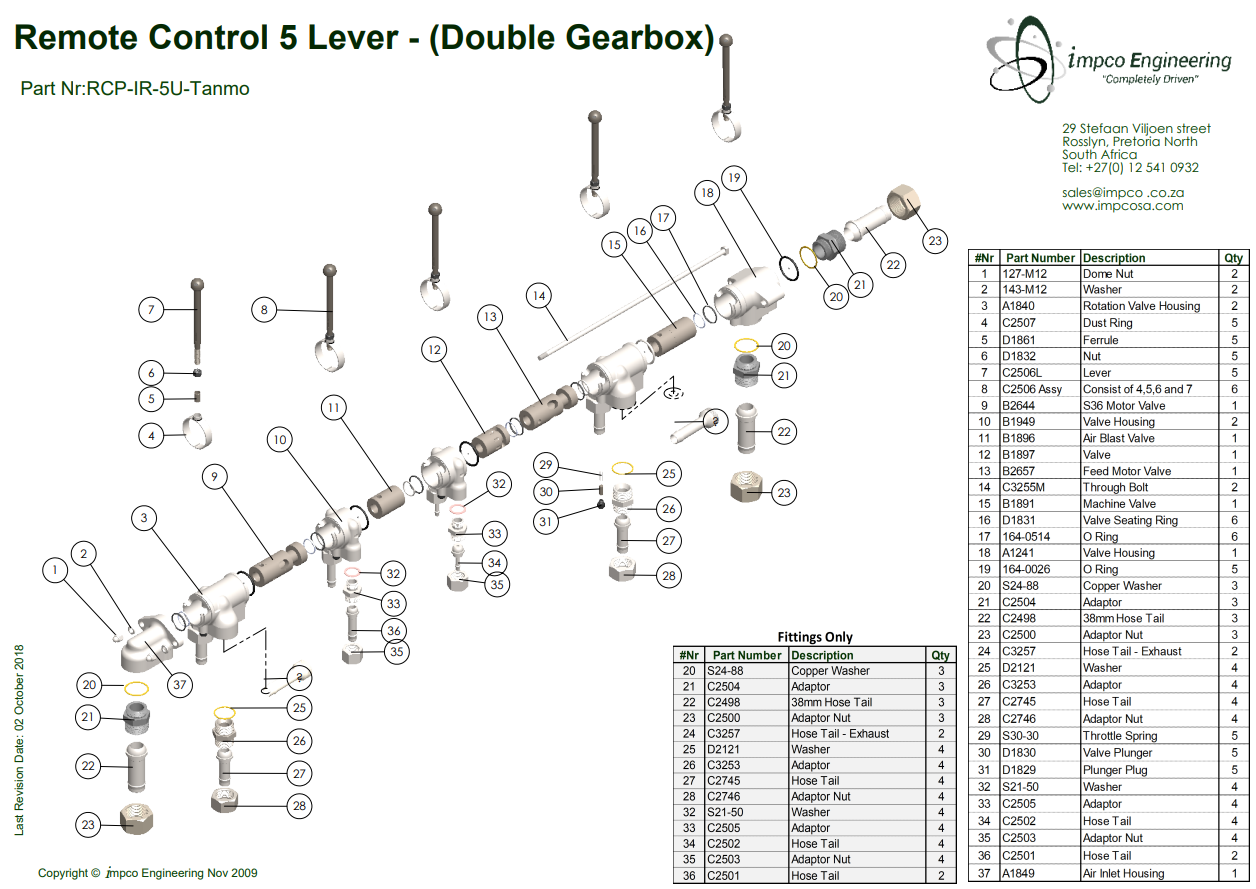

| RCP-IR-5U-Tanmo | 5 | Yes | Yes | Yes | Yes | Yes |
| RCP-IR-3U-IR-Tanmo | 4 | Yes | Yes | Yes | Ext Water | Yes |
| RCP-3U-A/B | 3 | Yes | No | No | Yes | On Backhead |

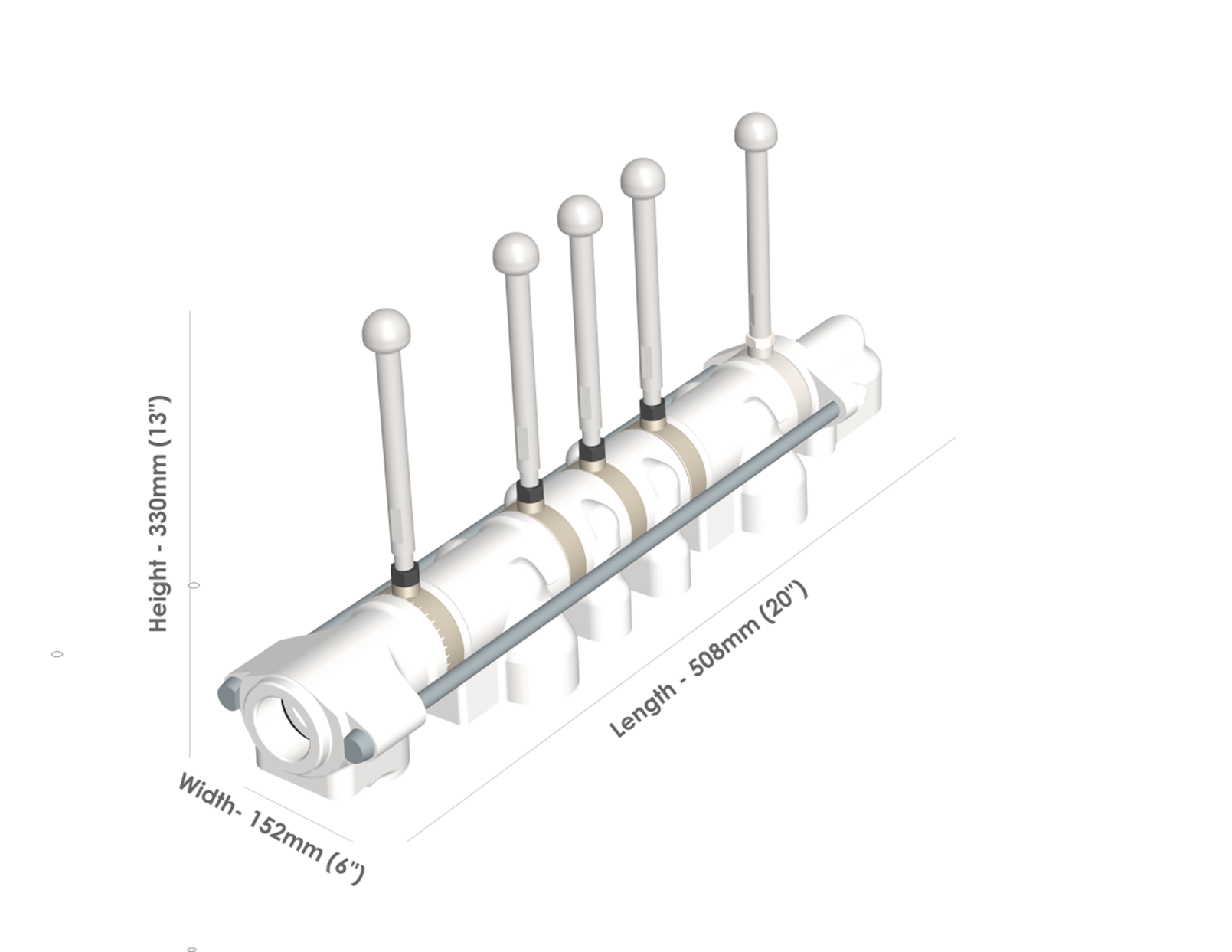

| Weight | 32 Kg (70lbs) |
