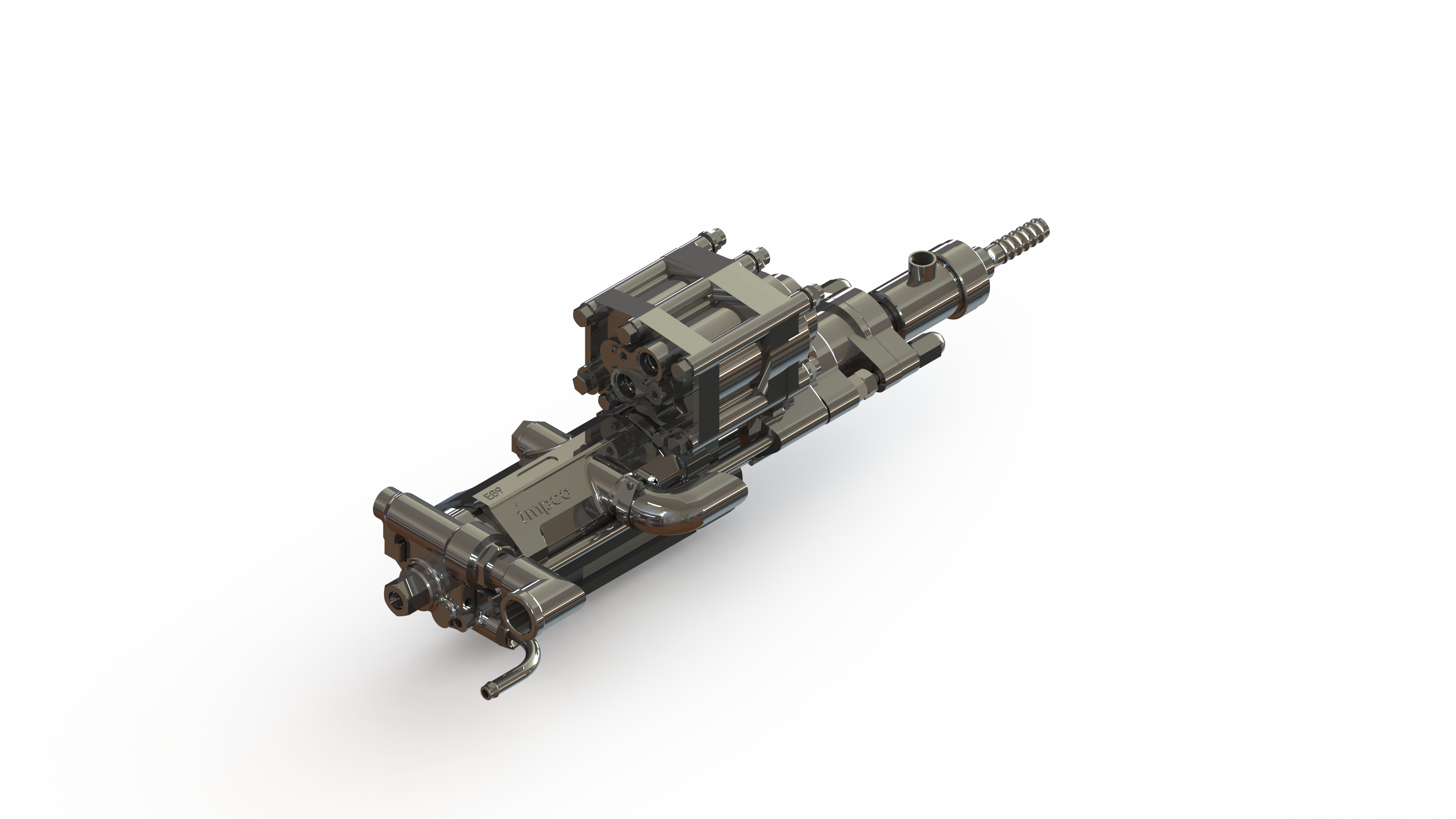

The S36IR is a robust 114mm rock drill built for heavy-duty use, offering exceptional performance with fast penetration, high durability, and efficient air consumption. Designed with premium materials for long-lasting reliability, it features remote control operation and positive lubrication for optimal performance. Suitable for both wet and dry drilling, the S36IR is available in various configurations to meet diverse application needs.
The S36IR is a high-performance rock drill designed for demanding and heavy-duty applications. With its 114mm (41⁄2) diameter, it delivers substantial power and reliability. One of its standout features is the independently controlled rotation, which allows for precise and controlled drilling, making it highly adaptable to various operational conditions.
Engineered with longevity in mind, the S36IR’s internal layout has been carefully designed to ensure exceptional service life even under the most arduous working conditions. This robust construction is complemented by advanced materials that have been selected for their durability and longevity. The drill is optimized for fast penetration rates, meaning it can quickly tackle tough rock formations, while also offering impressive durability and minimal downtime. Additionally, the S36IR is highly efficient in its air consumption, reducing operational costs while maintaining superior performance.
The drill’s design builds on a proven and durable framework, which has been further enhanced by the inclusion of premium materials. These materials are crafted and manufactured to strict tolerances, ensuring consistent quality and performance. This attention to detail in both design and materials results in a rock drill that is not only powerful but also highly reliable and capable of withstanding the toughest environments.
A critical feature of the S36IR is its lubrication system. Atomised oil is delivered through a lubricator fitted to the incoming airline, ensuring that all internal components are properly lubricated. This system is particularly focused on the heavily loaded front-end components, ensuring that friction and wear are minimized even under the most demanding conditions, further extending the life of the machine.
The S36IR offers a range of build options, allowing it to be tailored to meet the specific needs of different applications. Its versatility is further enhanced by its remote control operation, which ensures ease of use and safety in challenging environments. Additionally, the drill is adaptable to both wet and dry drilling, with options for 11mm (7/16) diameter for wet drilling and 14mm (9/16) diameter for wet or dry applications, giving operators flexibility in their drilling operations.
In summary, the S36IR combines advanced engineering, superior materials, and innovative features to provide a rock drill that excels in performance, durability, and efficiency, making it the ideal choice for heavy-duty applications.
| Power and Durability | Features a 114mm (4½") diameter for heavy-duty performance, long-lasting durability with premium materials, and a design based on proven technology from the 70’s. |
| Efficiency and Control | Offers high penetration rate, efficient air consumption, independently controlled rotation for precision, and flexible drilling options (11mm for wet, 14mm for wet and dry). |
| Operational Safety and Maintenance | Includes a positive lubrication system for all internal parts, remote control operation for safety, and various build options to cater to different application needs. |
| Desc | Metric | Imperial |
|---|---|---|
| Stroke | 86mm | 3.39 inch |
| Bore | 114mm | 4.49 inch |
| Length (without shank) | 828mm | 33 inch |
| Mass | 120kg | 265lb |
| Blows per minute | 1630 @ 5 Bar | 1630 @ 72.52 psi |
| Rotation Motor | 4.0 Kw @ 120 RPM—5 bar | 236 ft lbs @ 73 psi |
| Nominal Diameter | 35 - 89 mm | 1.38 - 3.5 inch |
| Reamed Diameter | up to 127 mm | up to 5 in |
| Drilling Dept Capacity | up to 46 m | up to 150 ft |
| Air Consumption | 212 L/sec @ 7 bar | 450 cfm @ 100 psi |
| Water Requirements | 37 L/min @ 5 bar max. | 10 gpm @ 70 psi max. |
| Air Connection -Hammer | 40mm | 1.5 in |
| Air Connection -Rotation | 25mm | 1.0 in |
| Water Connection - | 20mm | 0.75 in |
| Water Requirements | 37 L/min @ 5 bar max. | 10 gpm @ 70 psi max |
| Shank Size | Male 44 mm Four Spline Shank R32, R38, T38 and T45 |
