Designed to enhance mining operations by increasing
production and safety while reducing cycle times.
Purpose-Built Design
Specifically engineered for blind sinking shafts, allowing operators to work safely from the shaft bottom.
Performance
It promises faster, deeper, and more accurate drilling due to
enhanced control systems. The new Human Machine Interface (HMI) allows for both manual and automatic control.
Complete Redundancy
Complete mechanical redundancy on all electrical
systems. In event of power failure, all drilling can still commence.
Data & Automation
Incorporates IoT for automated reporting on production and
maintenance, ensuring the machine operates at optimal performance.
Operational Efficiency
Multiple independent booms are positioned for redundancy to facilitating the completion of drilling patterns. The design is
an advanced version of the standard Jumbo, known for reliability and robustness but now includes modernized automation
and data integration.

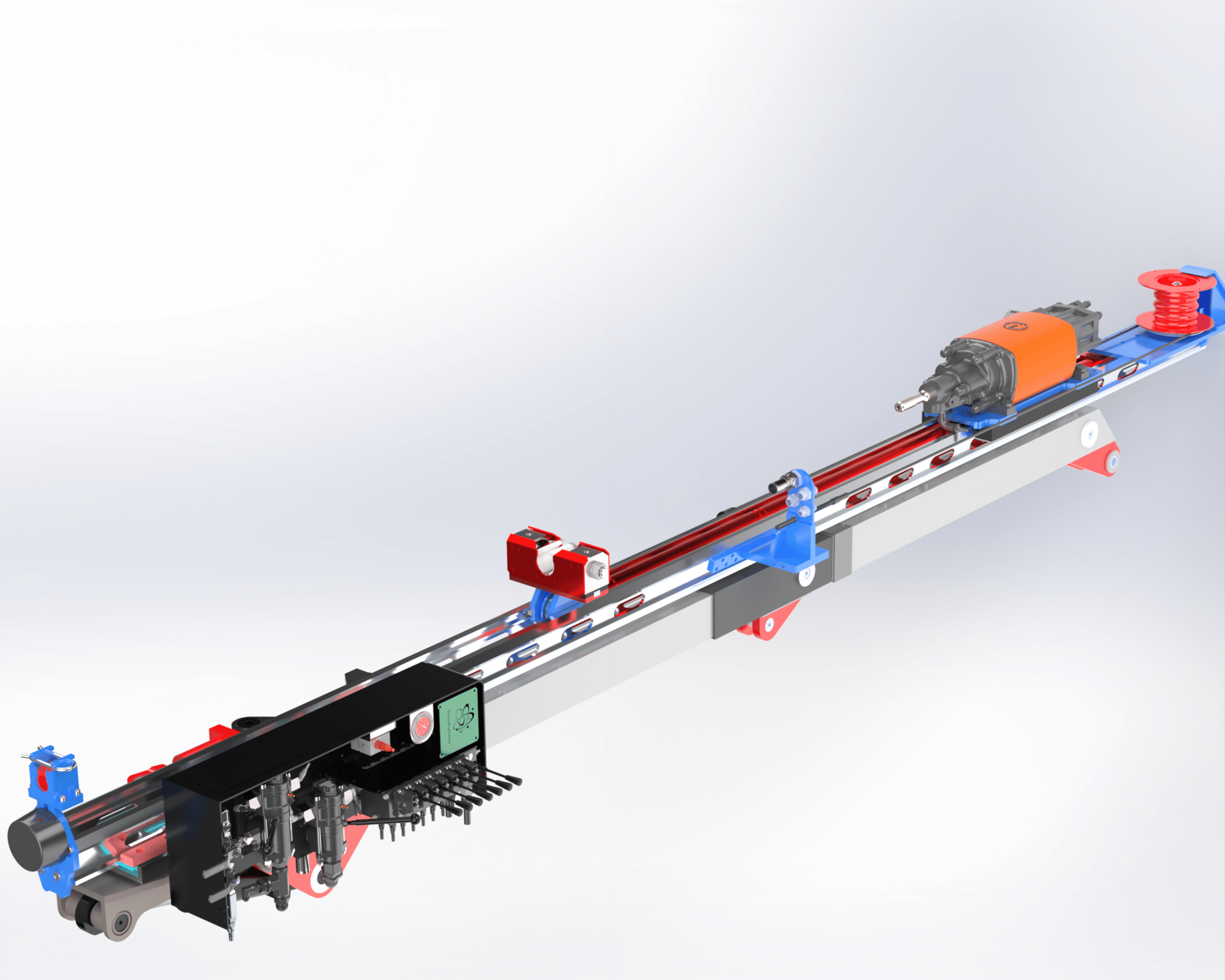

Hydraulic Clamp
For quick and efficient rod and split set handling is fitted on the feed system of the Sidewall Support Jumbo. Allows for both
clamping and collaring operations.
TRIED & TESTED DRILLING
Equipped with the most powerful S140 pneumatic drifters that are
well renowned in the industry, and built for the purpose of shaft sinking operations,
offer powerful and efficient drilling capabilities to help reduce cycle time.
Maximum drilling performance

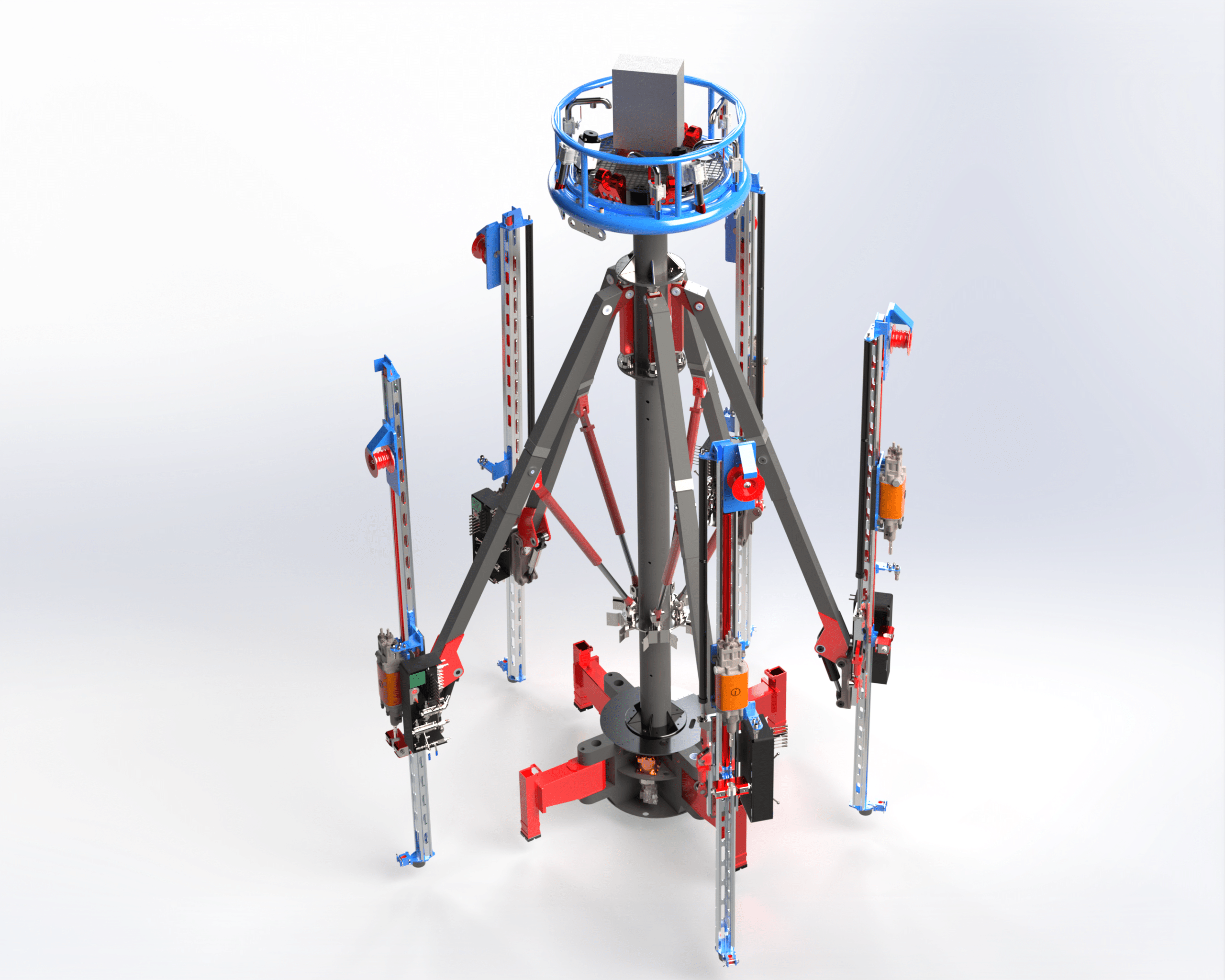

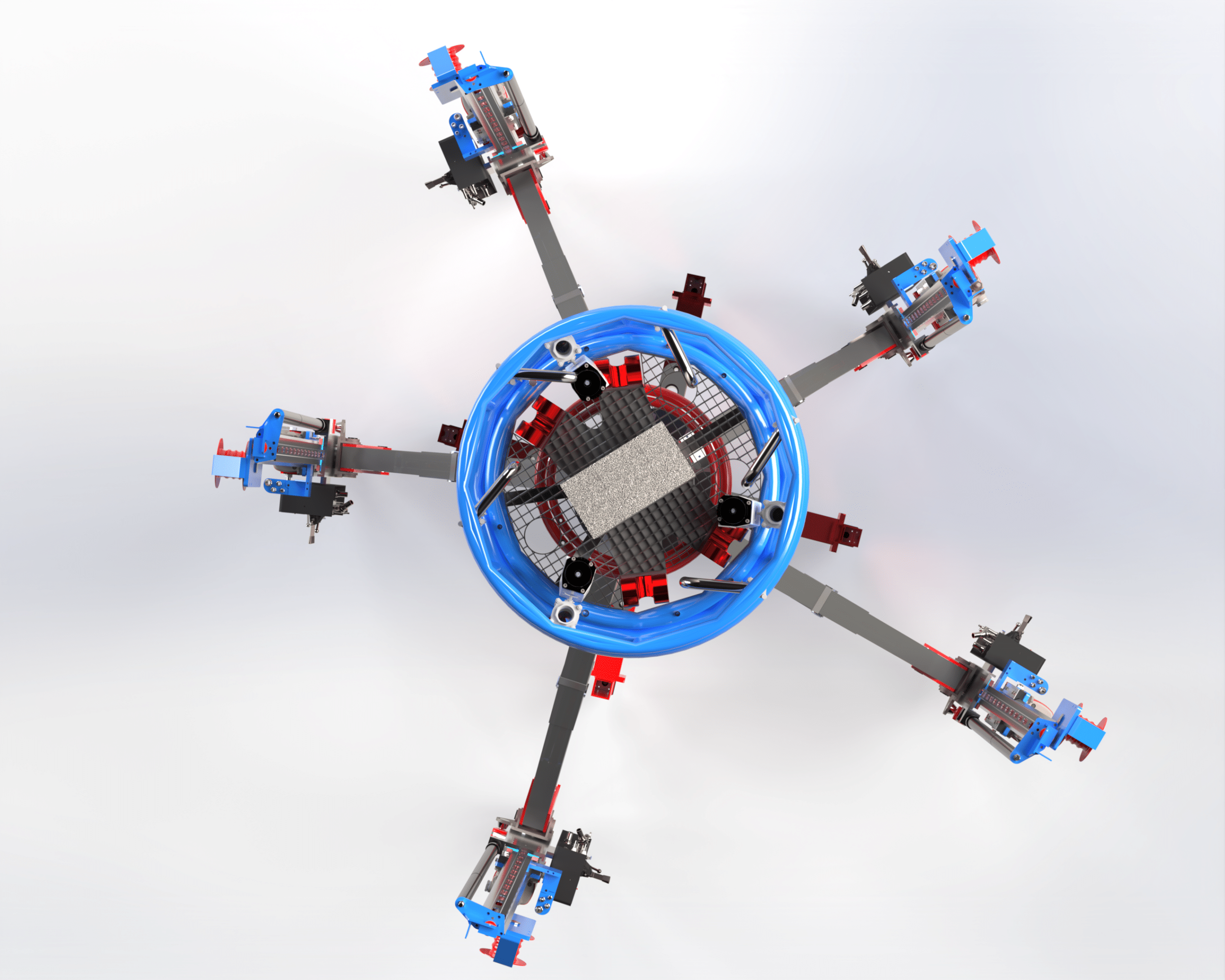

With each boom having the ability to drill holes from 2ft to 13ft vertically as
well as being able to rotate 60° left to right, allows for complete shaft bottom
coverage. (HMI) allows for both manual and automatic control.
Drilling Improvement
The new hydraulic design allows for increased performance of drilling and
retracting while also introducing quality of life improvements like, automated
drilling, automated flushing, drifter anti-stall and rod pullout capabilities.
Noise Reduction
With the new integrated muffling system fitted onto the air motors as well as
integrated drifter noise reduction for increased operator safety and comfort.
SAFETY
With the addition of remote controls, operators will be able to control the boom arm
from a safe distance from the rock face allowing for ultimate safety. Built into the rig
are additional sensors to aid in the ease of operation. Some of the safety features
incorporated are boom collision avoidance and integrated e-stop buttons amongst others.
