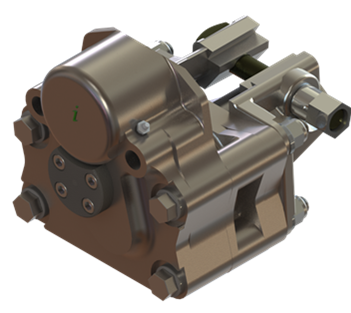

Single Feed Gearbox (Standmo)

The Single Gearbox provides a lightweight, efficient drive option for the MKV Long Hole Feed, delivering reliable torque for standard drilling conditions. Its simple, durable design ensures smooth rotation, reduced maintenance, and cost-effective performance for general long-hole drilling applications.

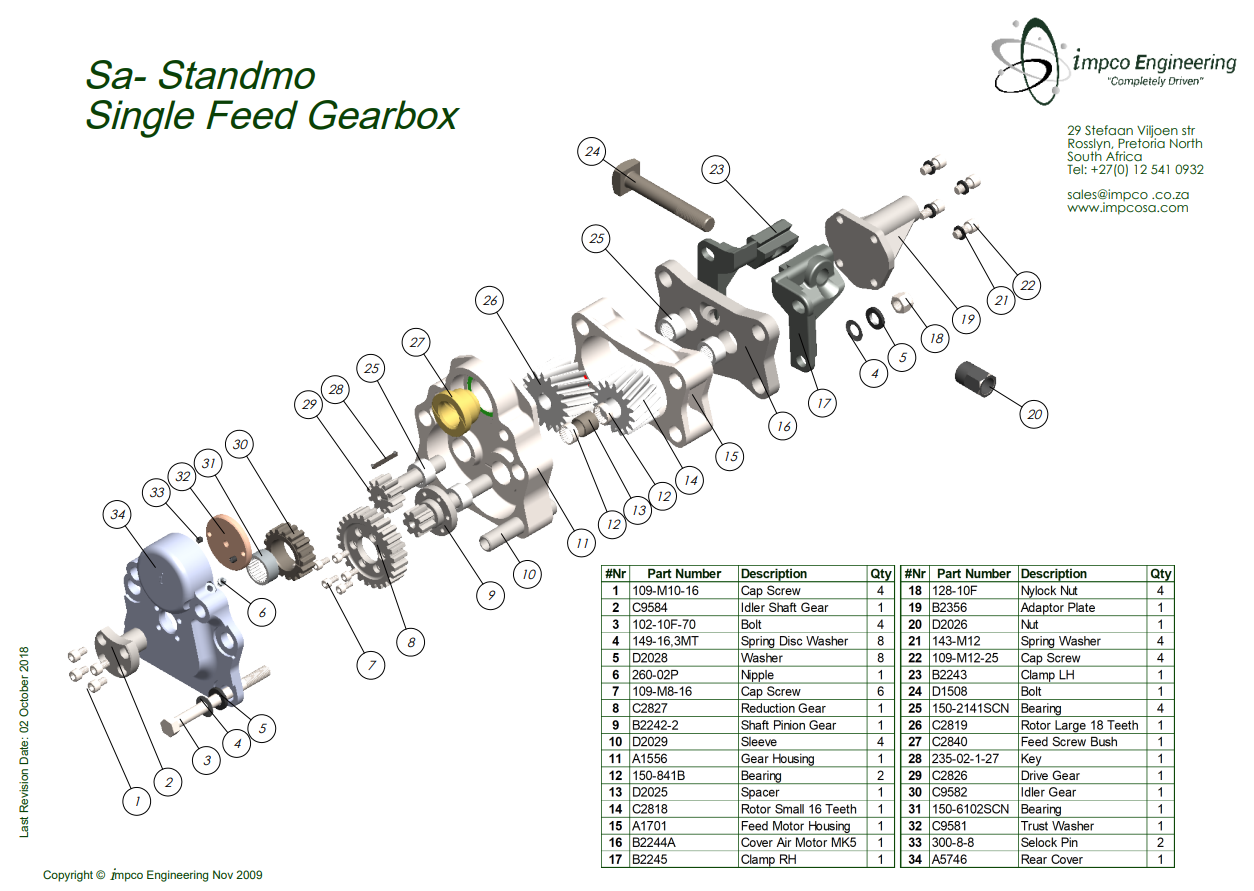

No Part No Description QTY
1109-M10-16Cap Screw4
2C9584Idler Shaft Gear1
3102-10F-70Bolt4
4149-16,3MTWasher8
5D2028Washer8
6260-02PNipple1
7109-M8-16Cap Screw6
8C2827Reduction Gear1
9B2242-2Shaft Pinion Gear1
10D2029Sleeve4
11A1556Gear Housing1
12150-841BBearing2
13D2025Spacer1
14C2818Rotor Small 16 Teeth1
15A1701Feed Motor Housing1
16B2244AAir Motor Cover MK51
17B2245Clamp RH1
No Part No Description QTY
18128-10FNyloc Nut4
19B2356Adaptor Plate1
20D2026Nut1
21143-M12Washer4
22109-M12-25Cap Screw4
23B2243Clamp LH1
24D1508Bolt1
25150-2141SCNBearing4
26C2819Rotor Large 18 Teeth1
27C2840Feed Screw Bush1
28235-02-1-27Key1
29C2826Drive Gear1
30C9582Idler Gear1
31150-6102SCNBearing1
32C9581Thrust Washer1
33300-8-8Selock Pin2
34A5746Rear Cover1
